Shortly after the APL China arrived in Seattle to discharge the damaged containers and assess vessel damages, the International Longshore and Warehouse Union Auxiliary (Seattle, Washington) posted 25 photographs documenting the damages to the C-11 containership. 15 of those pictures were downloaded from the page ILWU page and in turn posted on this page.

In November 1998 the home page for the ILWU (URL was http://www.jps.net/xendar/auxpage1.htm), but this link is no longer active. The photographs are still available though on URL http://www.jps.net/xendar/china/). There are 28 original photographs. Other original photographs - which are not posted on my page - of interest are ch07.jpg and ch16.jpg. These can be downloaded by simply clicking on the file name. There are an additional 21 photographs taken onboard of damaged containers. These are found under "new pictures" on the html page named china.htm.

Shortly after the photographs were posted by the ILWU I took 15 of these photographs have been captured, and ordered logically from bow to stern of the APL China. Thumbnail images with hot links are provided for 7 of the photographs. The photographs (about 50Kbytes each) have eight character codes (so they are still readable in DOS and Windows 3.x formats) which are numbered and coded as follows:


the 'chin' stands for APL China

XX is the number of the photograph in the original source (ILWU page)
A is a alphabetic code (a to f) starting from the port side bow, around to the stern
Y is a numerical code (1 to 6) giving the approximate orientation of the viewer;

for example "3" would be a photograph taken straight abeam of the ship location "c"

Photo Number from Original Source

Ship location Code

View Code

Comments & Remarks

17

a

5

long shot; lifeboat intact

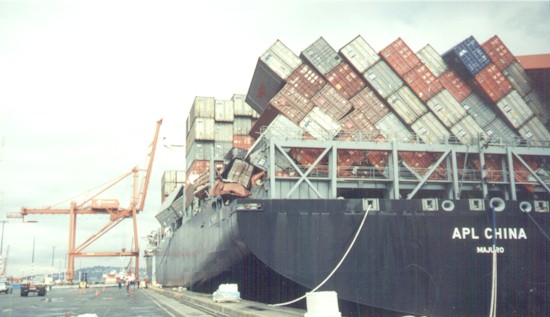

22

d

5

long shot from stern quarter

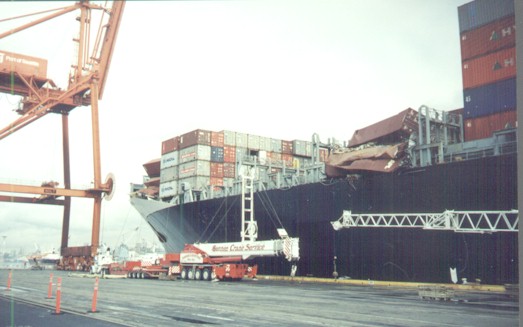

26

a

3

(chin26a3.jpg)

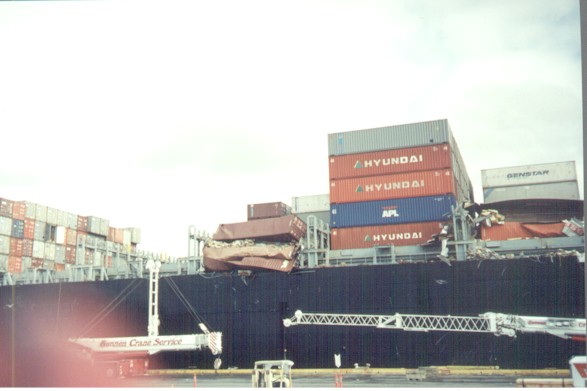

12

a

2

starts views, port bow

25

b

3

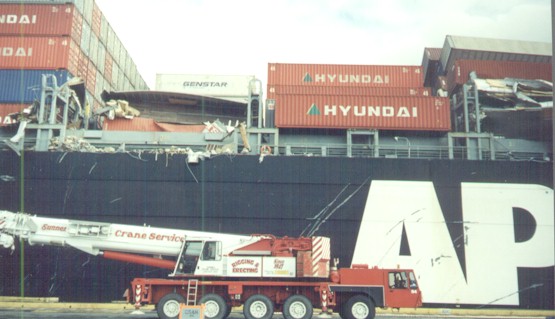

24

b

2

(chin24b2.jpg)

15

b

2

(chin15b2.jpg)

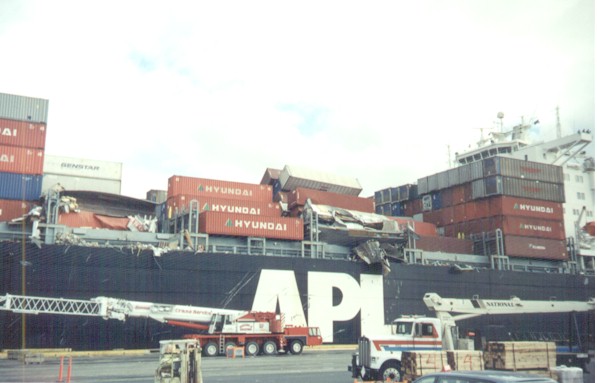

04

c

2

long shot w/ pilothouse

01

c

2

shows lifeboat - intact

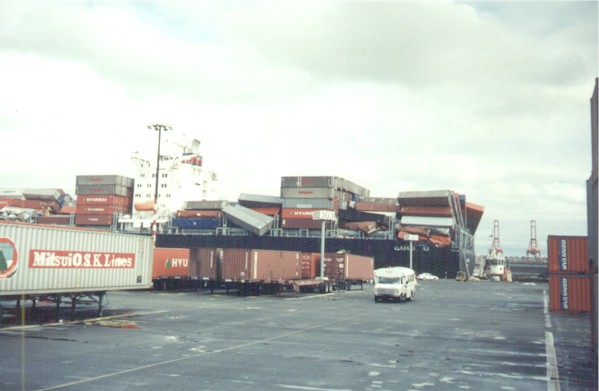

03

d

4

long shot off port stern quarter

18

d

4

close-up shot; quick disconnects intact

19

d

4

close-up shot

20

d

4

close-up of stern quarter

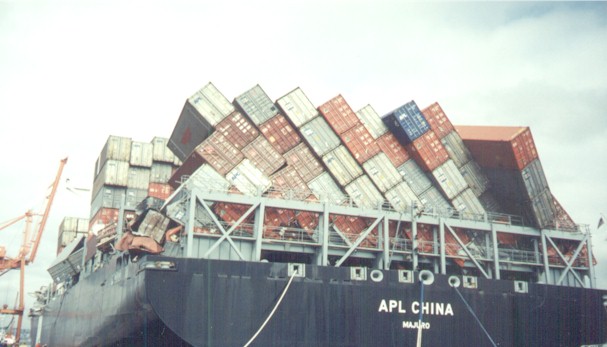

21

e

5

quick disconnects are intact

27

f

6

long shot - way aft

The photo of the damaged containers on the OOCL America which occurred in late January 2000 is very similar to that suffered on the APL China. This photo appeared in Lloyd's List, February 17, 2000. It appeared on page 5.

This photo is similar to photo 18 above; note quick disconnects are intact
